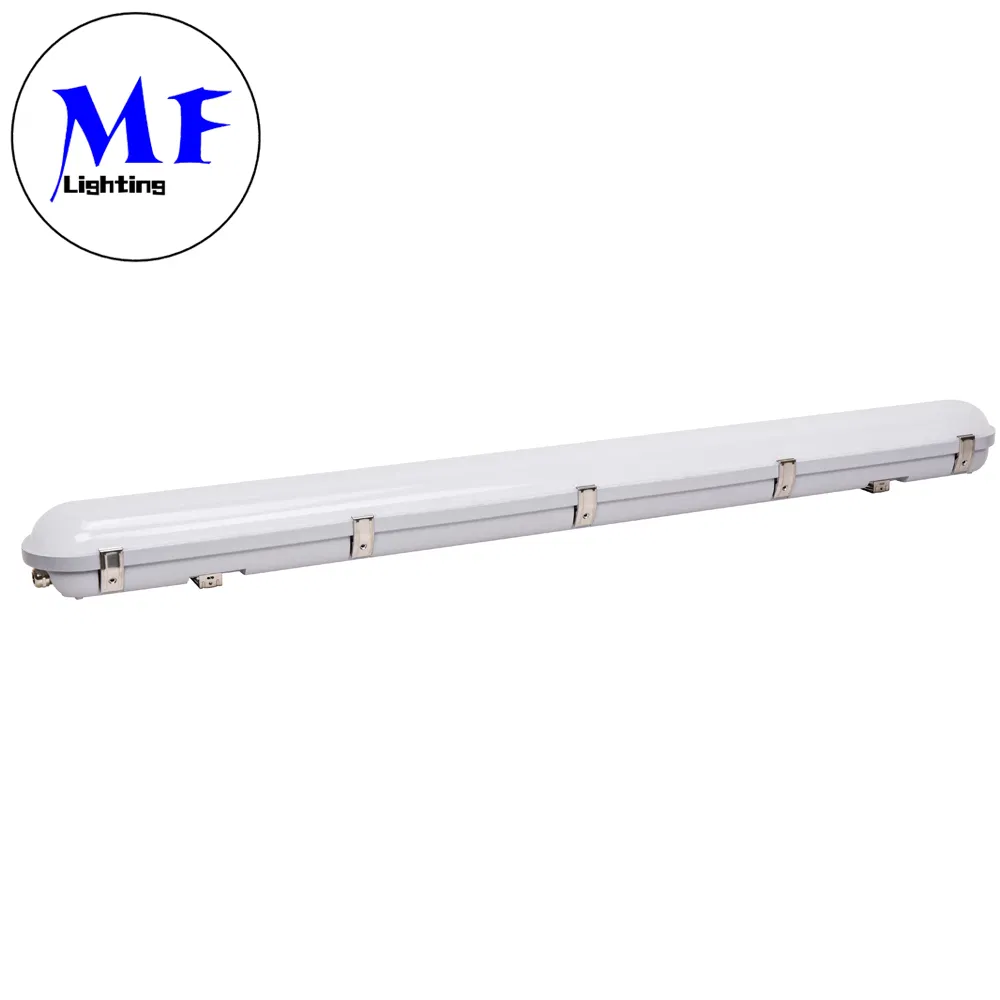

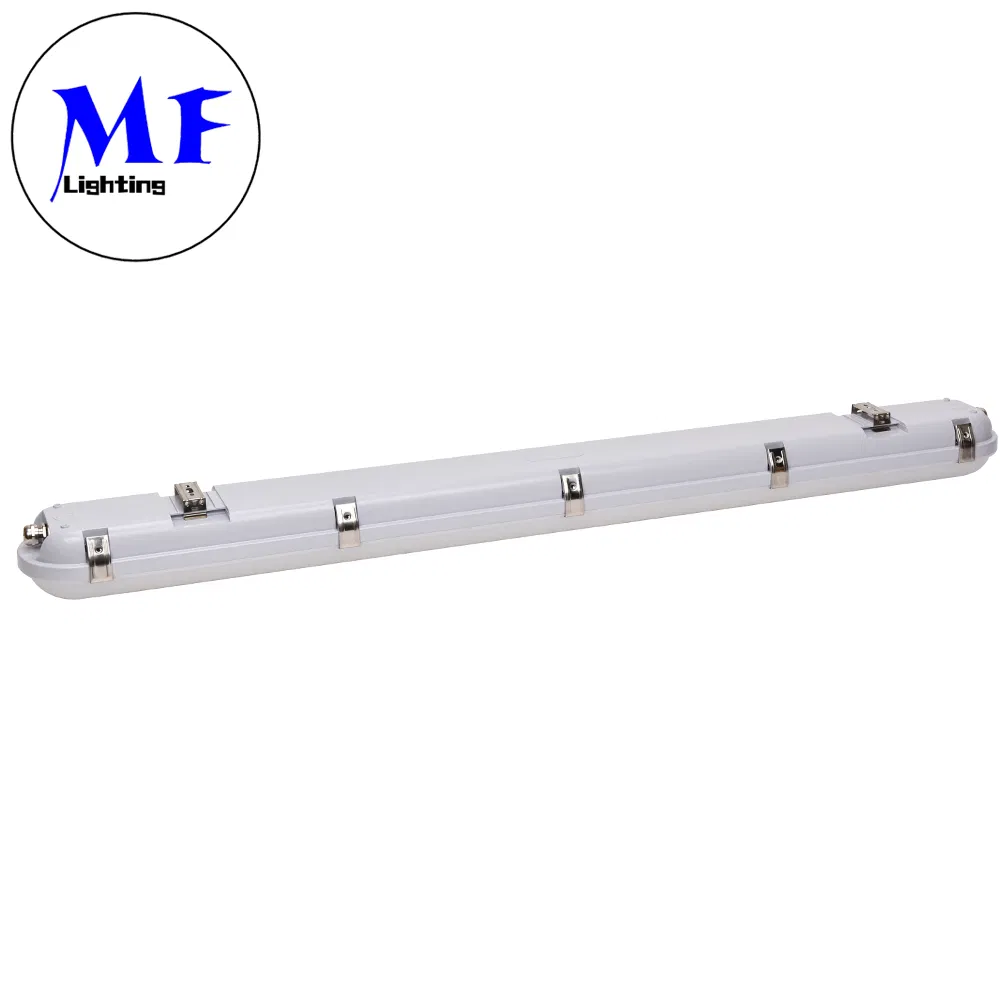

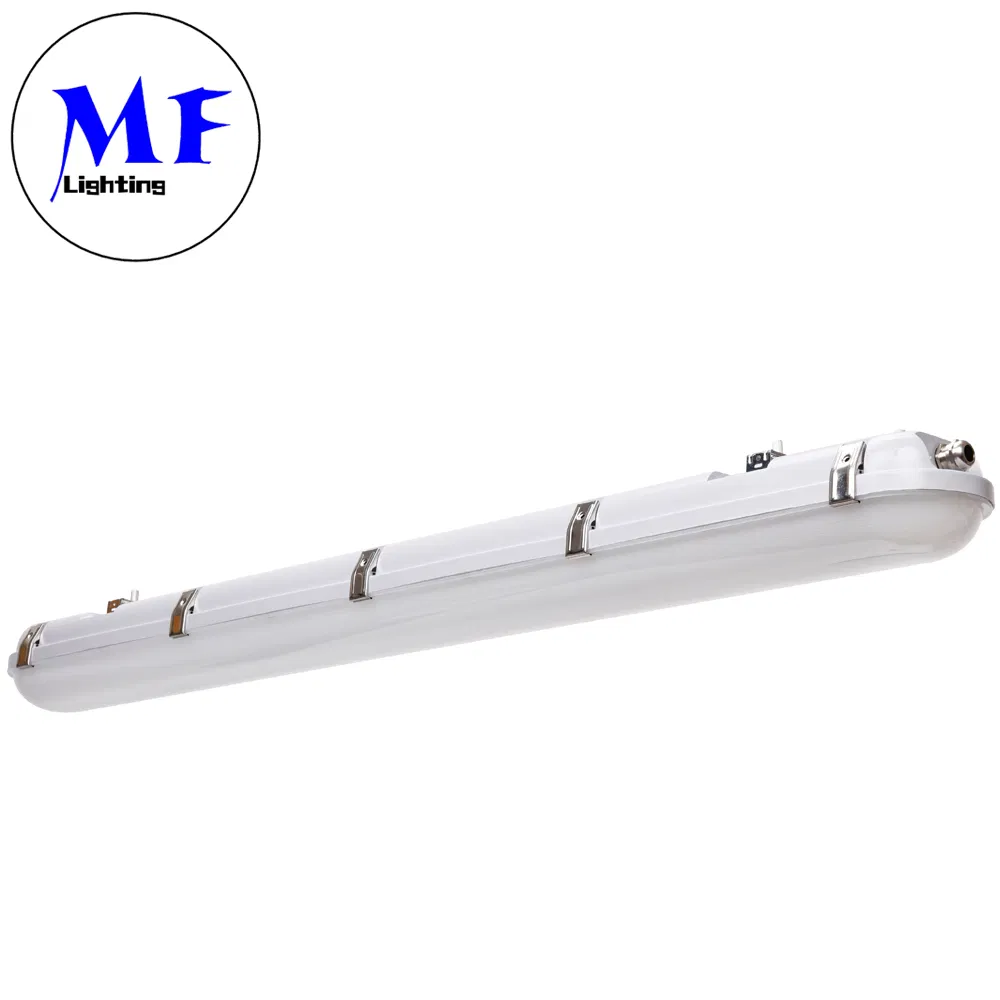

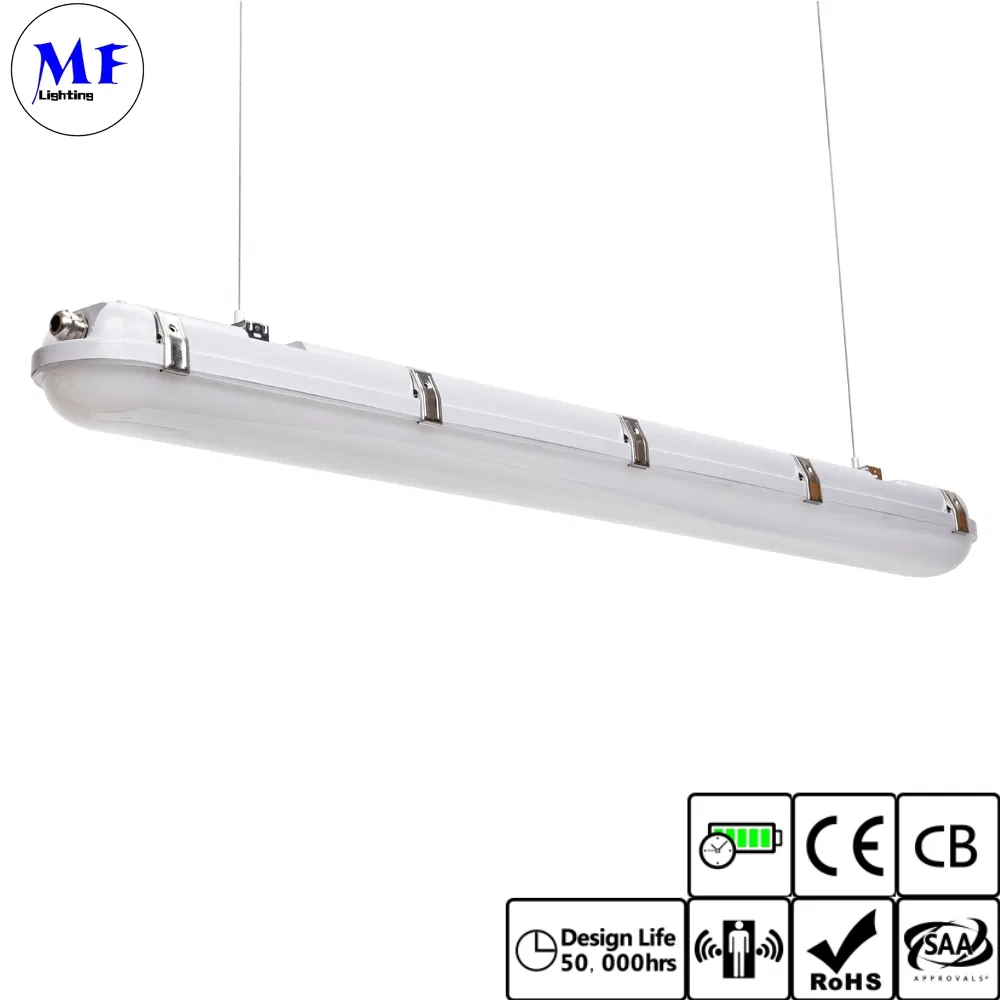

Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train

1 / 5

Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train

Send Inquiry

Product Description

Quick Detail

1. IP66 Tri-proof LED Light Fixture
2. Input: AC 100-277V, 50/60Hz
3. Luminous Flux: 140lm/w±10%
4. CRI: >85
5. PF: >0.95
6. Lifespan: >=50000Hrs
7. IP rate: IP66
8. IK rate: IK08
9. Sensor: Motion Sensor
10. Emergency Time: 90min

Technical Specifications

Parameter	Value Details
Model No	T218 / T236 / T258 / T270
Input voltage	AC100-277Vac 50hz/60hz
Power(watt)	20W / 40W / 60W / 80W
Product size(mm)	2ft(600mm) / 4ft(1200mm) / 5ft(1500mm) / 6ft(1800mm)
Color temperature	Warm White(3000K-4500K), Pure White(5000K-5500K), Cold White(6000K-6500K)
RGB	RGB Optional
LED Chip	SAMSUNG
Luminous Flux	140LM/W±10%
CRI(Ra)	>85
Lifespan	≥50000hrs
Beam Angle	120°
Material	Aluminum + PC
IP Rating	IP66
IK Rating	IK08
Emergency Time	≥90min
Sensor	Motion Sensor
Certificate	CE/RoHS
Warranty Period	5 years

Detailed Photos

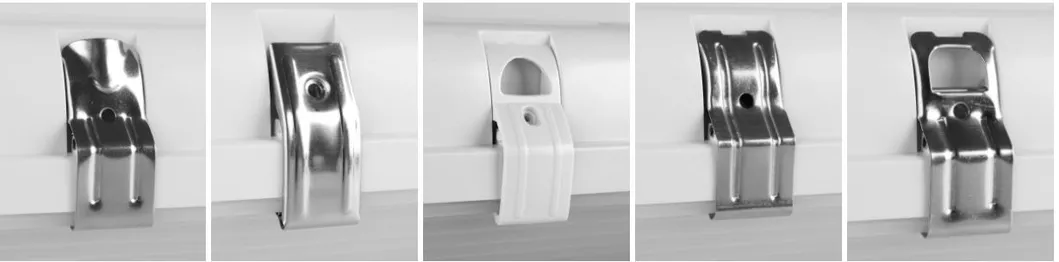

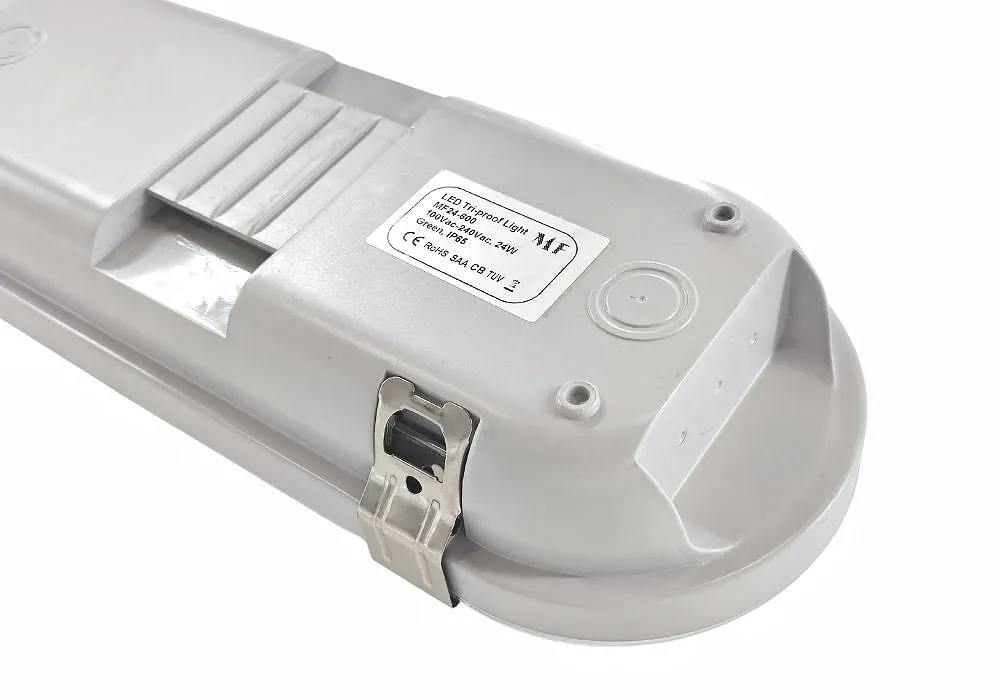

Clasp Type & Components

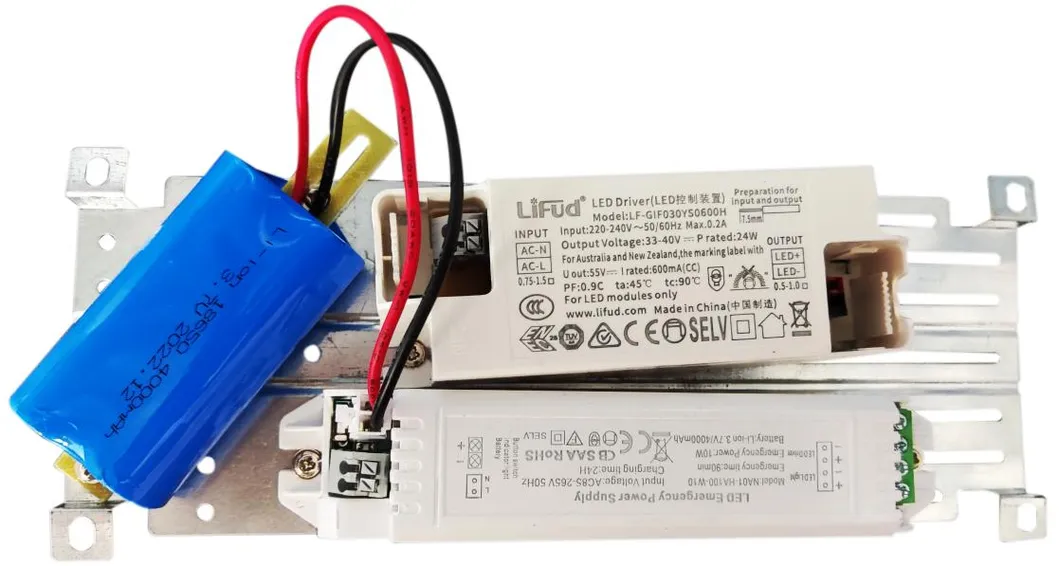

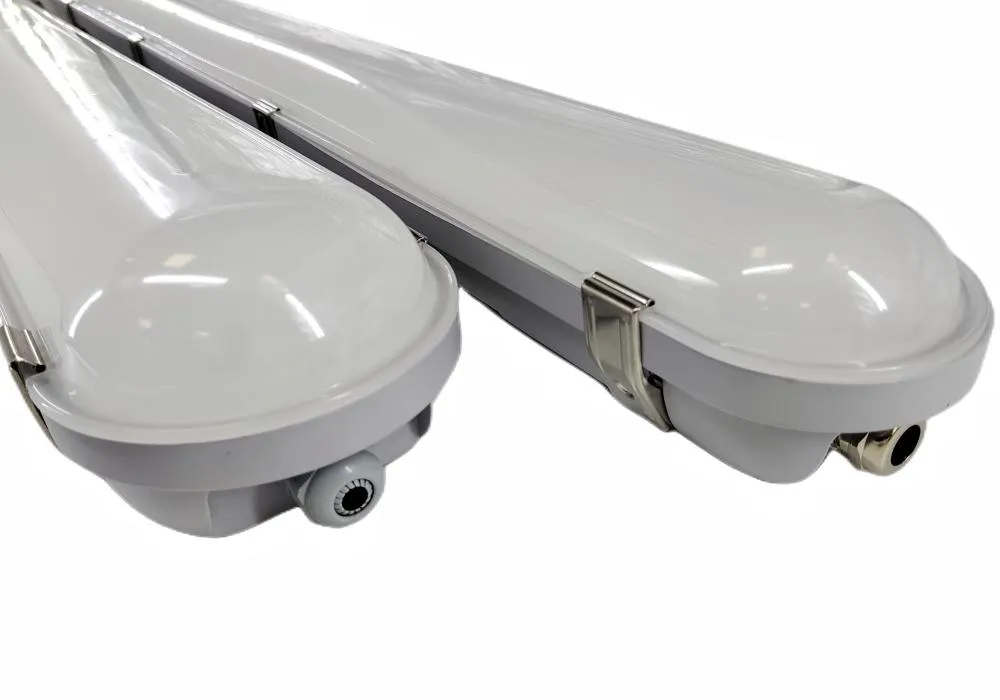

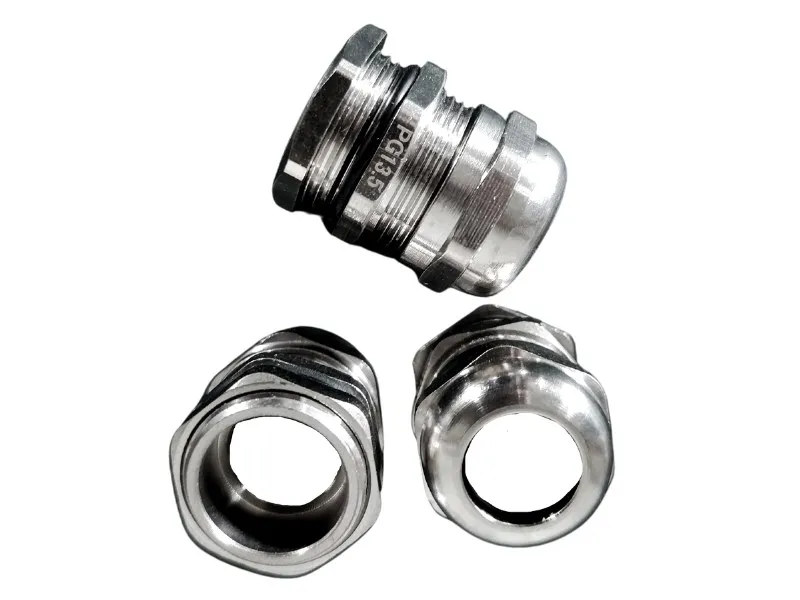

M20/M22 Waterproof Connector | LED Emergency Kit: 90 Mins | Motion Sensor Kit

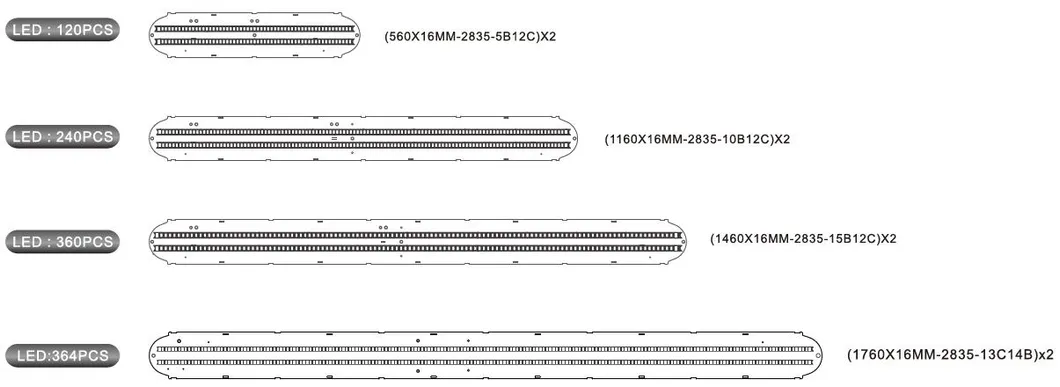

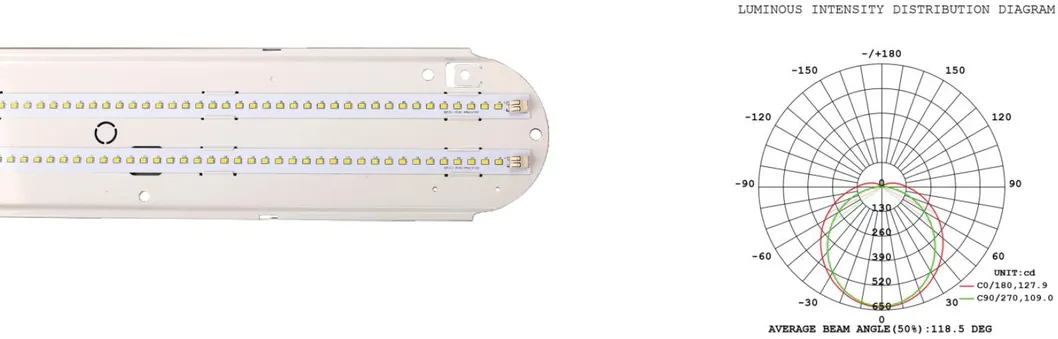

Internal Construction: 2 strips/SMD2835 | 120° Beam Angle

RGB Optional Features

Dimension & Packaging

Product Code	Dimensions(LxWxH)(mm)	Q'ty/ctn	Clips	G.W./CTN
T218	600x125x88	6	6	8.5kg
T236	1200x125x88	6	10	14.6kg
T258	1500x125x88	6	12	17kg
T270	1800x125x88	4	16	14kg

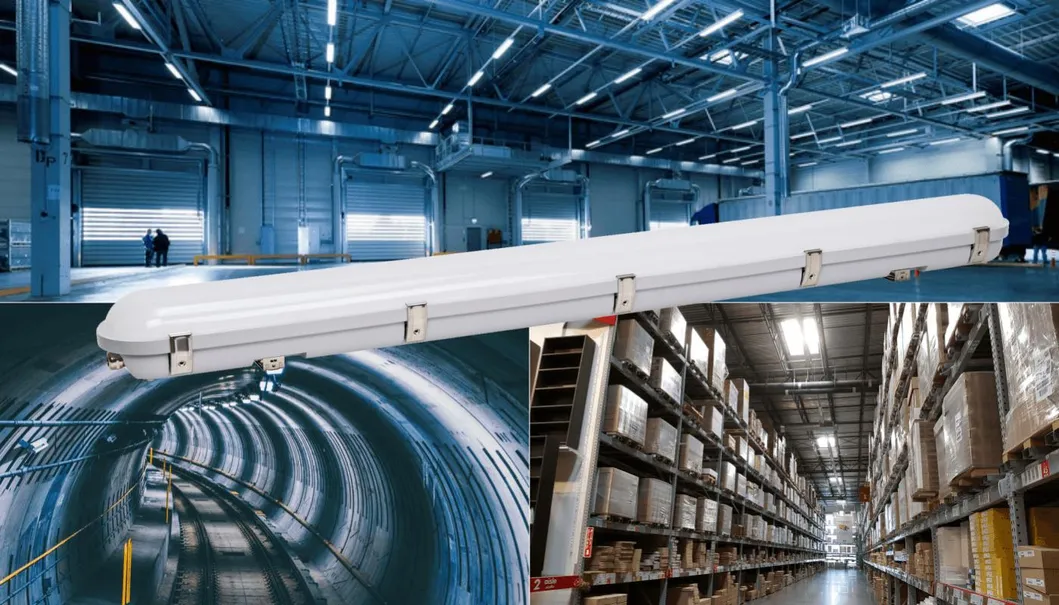

Applications

Industrial lighting: Commonly used in warehouses, factories, and production facilities to enhance visibility and safety.
Outdoor lighting: Suitable for car parks, walkways, and building perimeters, designed to withstand harsh weather.
Commercial lighting: Ideal for supermarkets, retail stores, and shopping malls for optimal product display.
Public lighting: Used in airports, train stations, and bus terminals for bright energy-efficient illumination.
Agricultural lighting: Suitable for greenhouses and livestock farms to assist plant growth and husbandry.

FAQ

1. What are your primary lighting products? We specialize in LED Triproof lights (Vapor Tight), LED High Bay lights, Flood lights, Explosion Proof lighting, and various outdoor landscape solutions like garden spike and inground lights.

2. Is there a Minimum Order Quantity (MOQ)? We generally have no MOQ request for standard items. For customized models, we offer free customization for orders exceeding 1000 pieces.

3. What is the typical delivery time for orders? Samples are usually ready within 5-7 working days. Mass production typically takes 20-30 working days depending on the final order quantity.

4. What payment and shipping terms do you accept? We accept T/T, Western Union, and Paypal. Shipping terms available include EXW, FOB, CIF, CNF, and DDP to meet different logistical needs.

5. How are the LED lights protected during shipping? Each unit is packed in an individual color box and then secured in a high-strength master carton to ensure safe transit.

6. Do you offer OEM/ODM services? Yes, we provide full OEM and ODM services supported by our own professional design team to meet specific project requirements.
