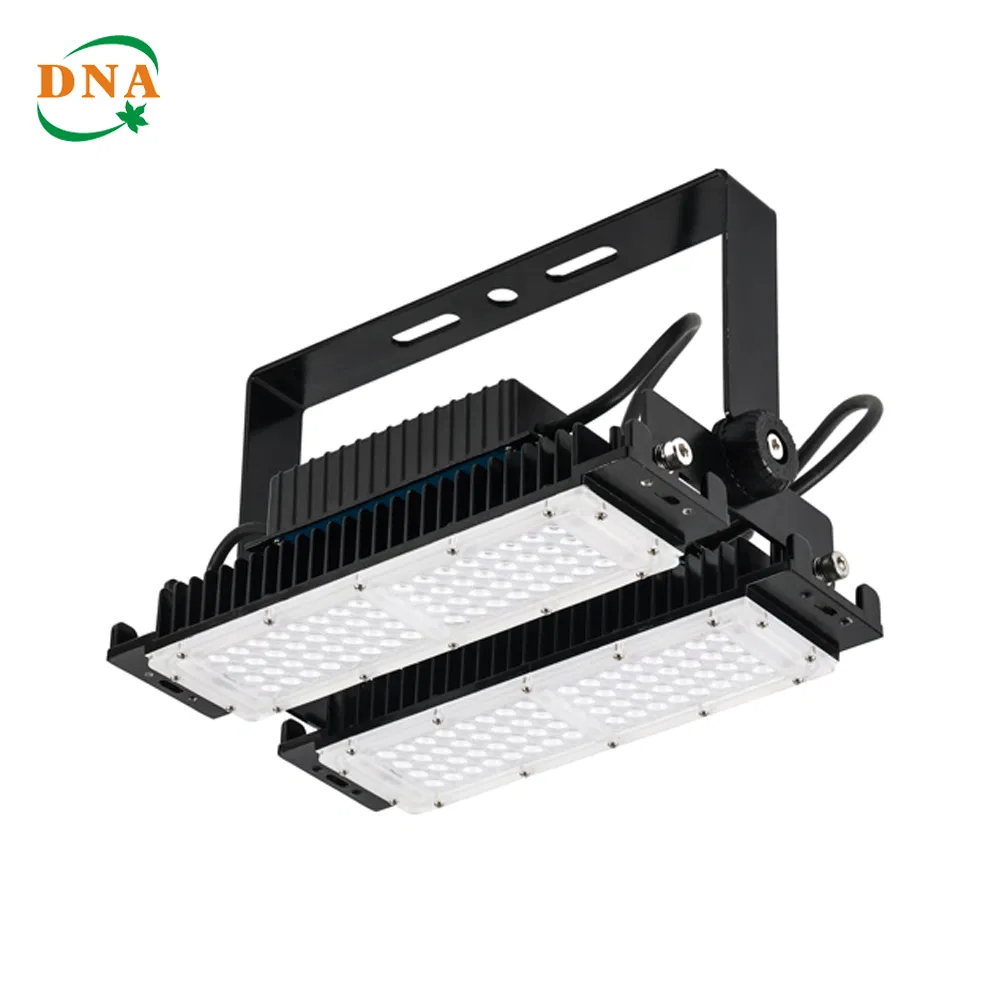

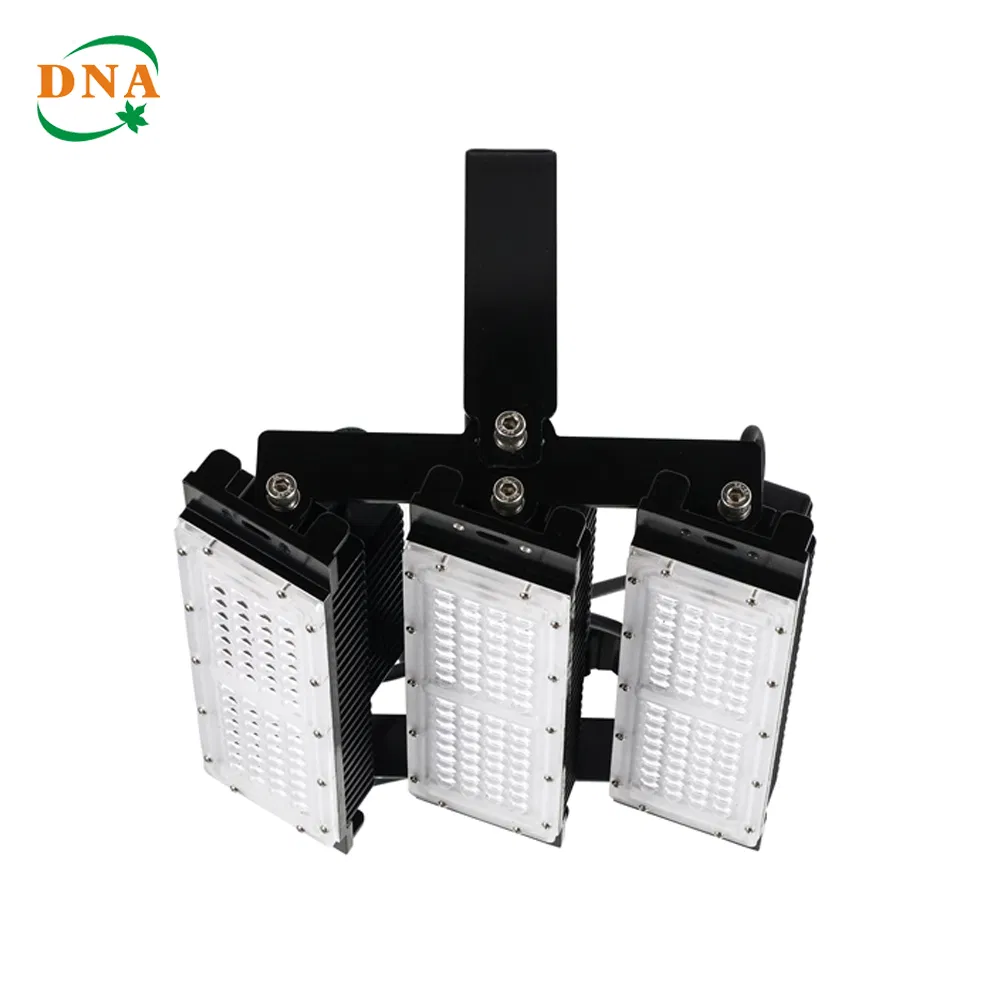

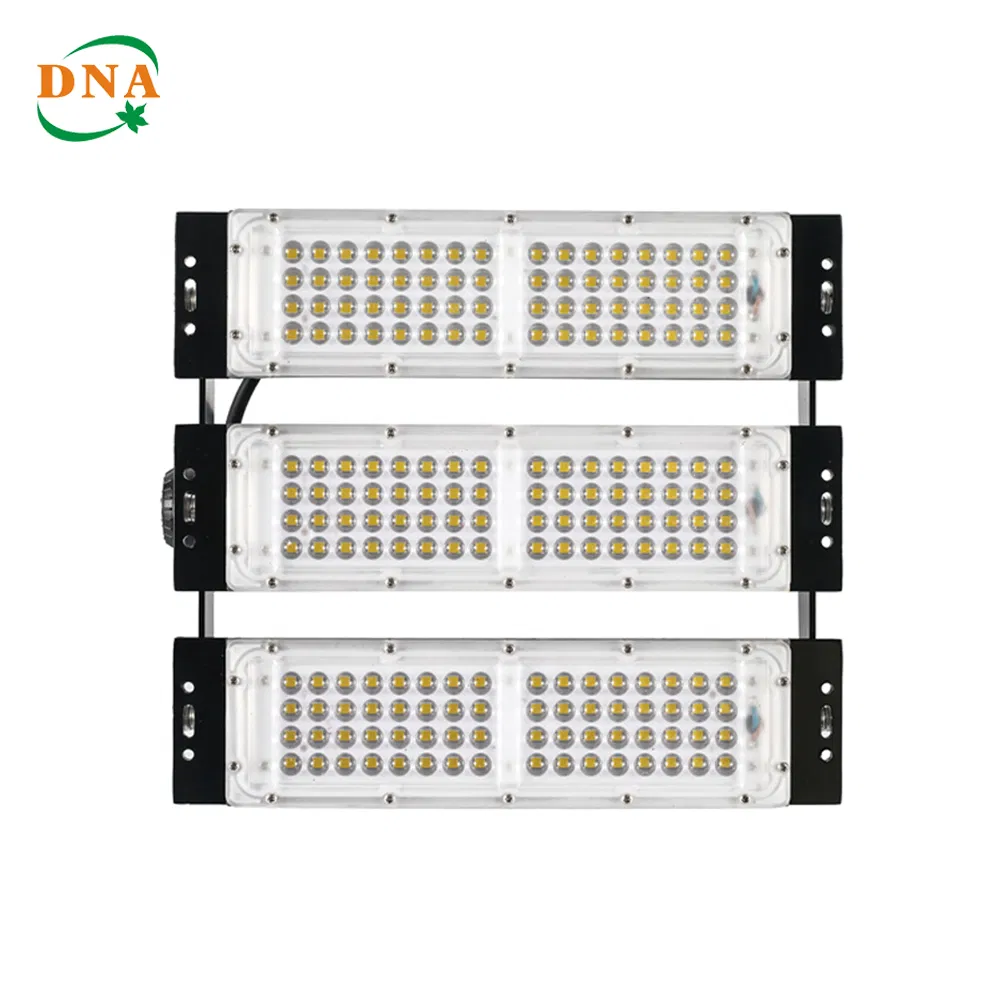

Outdoor Weatherproof Explosion-Proof LED Flood Light
This LED flood light features high brightness, energy saving, environmental protection, and easy installation.

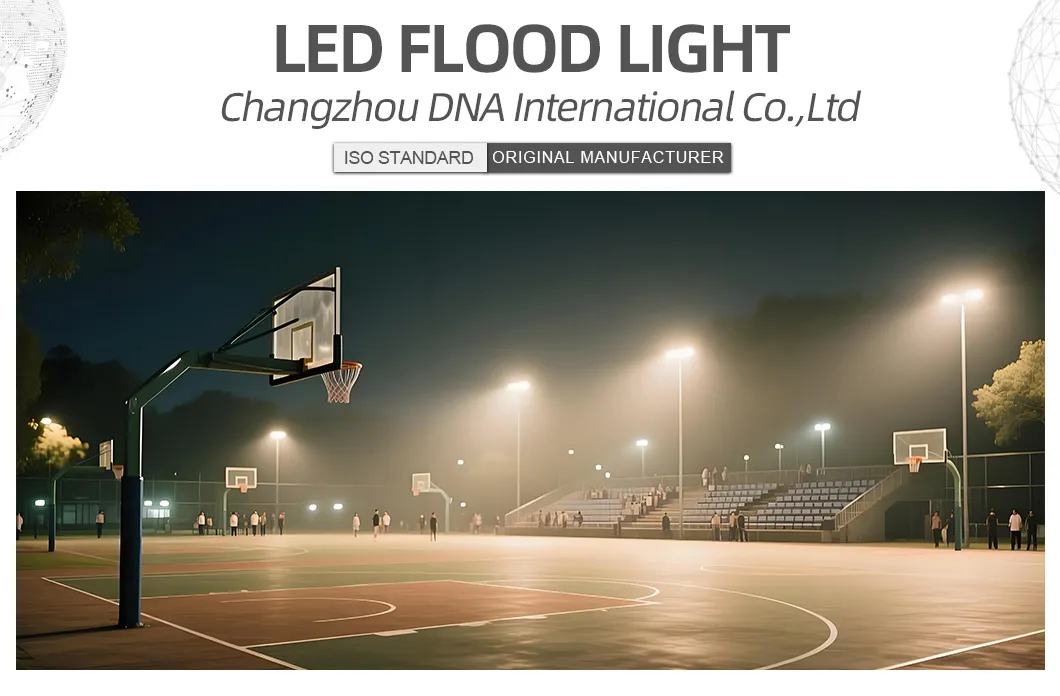

With a robust waterproof rating and international certifications, it is ideal for schools, parks, industrial facilities,
factories, and squares. Engineered for longevity and performance.
Basic Specifications
Model NO.FT02
ApplicationFactory/Stadium/Port/Park
IP RatingIP66 / IP67
CertificationCE, PSE, RoHS, UL
Operating VoltageAC90—300V
LED Chips BrandCREE
Luminous Efficiency100-200 Lm/W
Lifespan>50,000 hours
Warranty3/6 Years
Body MaterialAluminum Alloy
Technical Parameters
| Model |
FT02-30W |
FT02-50W |
FT02-100W |
FT02-150W |
FT02-200W |
| Power | 30W | 50W | 100W | 150W | 200W |
| Input Voltage | AC90—300V |
| LED Type | 3030/5050 |
| Lumen/Wattage | 100—200 |
| Anti-surge | 10KV |
| Power Factor | ≥0.9 |
| CRI | >80 |
| Color Temp | 1800—7500K |
| IK Rating | IK10 |
| Beam Angle | 45°/60°/90° |
| Dimension (mm) | 300*75*140 | 300*75*140 | 300*195*140 | 300*265*140 | 300*335*140 |
| Net Weight (kg) | 1.5 | 1.8 | 3.5 | 4.8 | 6.5 |
Product Characteristics

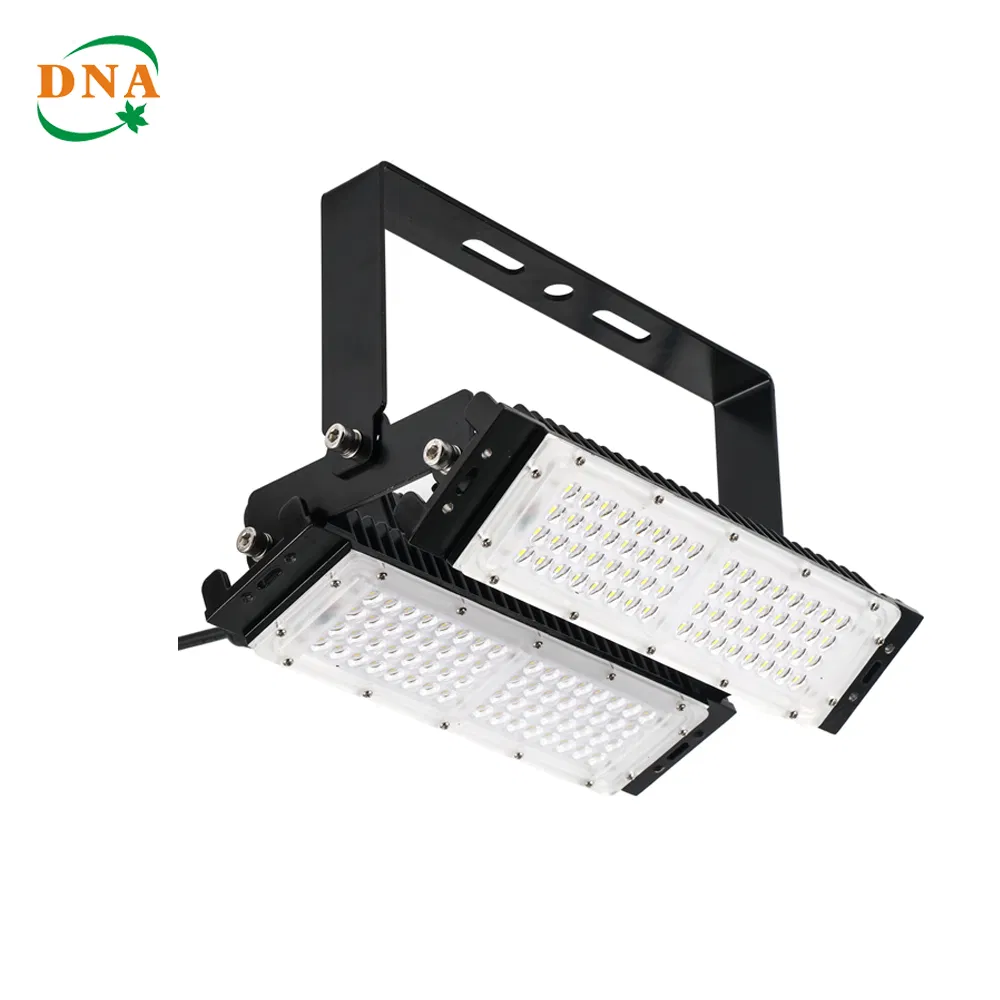

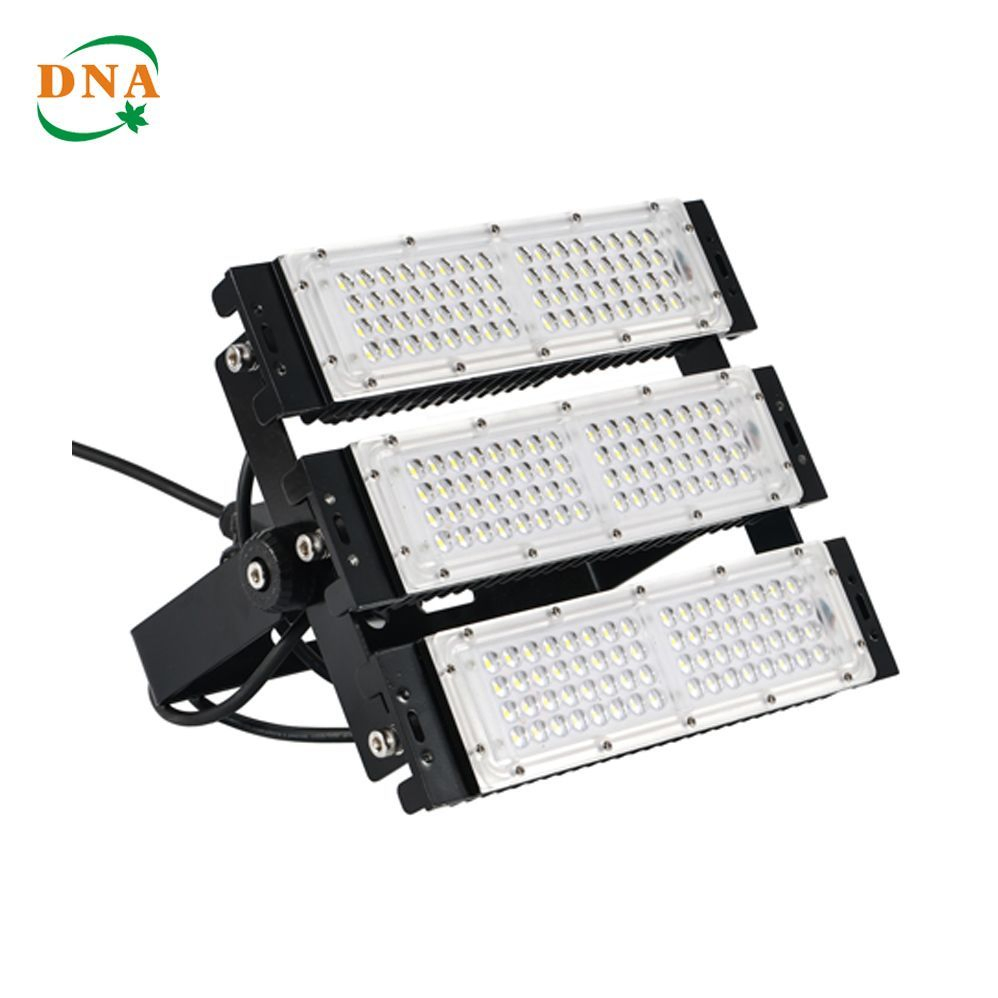

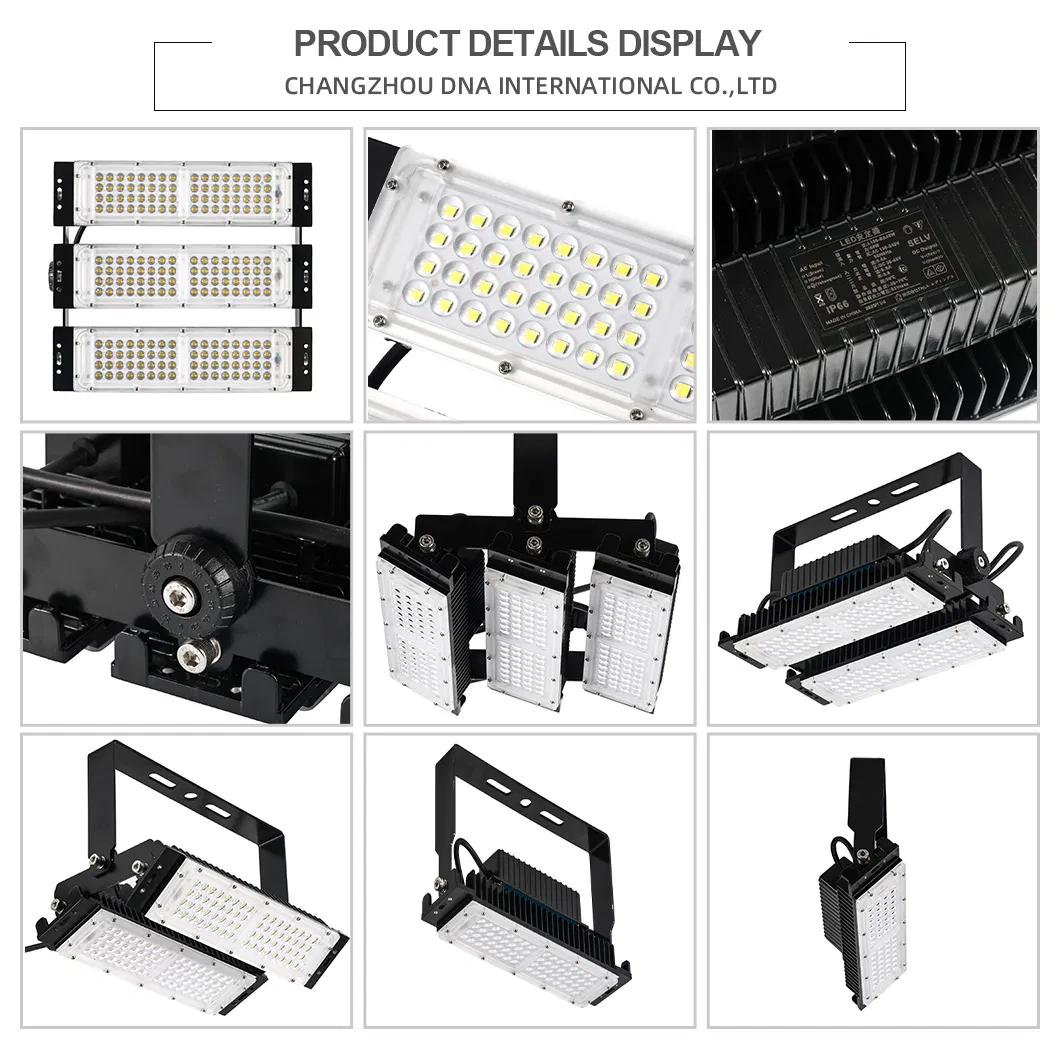

Unique Modular Design: This is a proprietary design where each module features its own independent power supply for enhanced stability and easier maintenance.
Heavy Duty Construction: Built with a premium aluminum alloy body, providing exceptional heat dissipation to ensure each module operates at peak efficiency.
Adjustable Precision: The lighting beam angle of each individual module is fully adjustable, making it easy to meet specific site lighting requirements.
Weatherproof Performance: Rated at IP66/IP67, it is designed to withstand harsh outdoor environments and extreme temperatures (-45 ℃ to +65 ℃).
Frequently Asked Questions
Are you the original manufacturer for these flood lights?
Yes, we are an original manufacturer with production expertise dating back to 2001, ensuring high quality and direct factory support.
What is the minimum order quantity (MOQ)?
We provide flexible ordering options. You can place an order for only one set; there is no strict quantity requirement.
Is customization available for specific lighting needs?
Yes, we offer customization services. For example, we can provide lamps with specific light spectrums, such as blue light emission of less than 1%.
How long is the warranty period for the FT02 series?
We offer a comprehensive warranty ranging from three to ten years, depending on your specific quality and project requirements.
What is your after-sales policy if a fault occurs?
We maintain a reliable after-sale policy. In the event of any technical or manufacturing problem, we provide free replacements.
Are these lights suitable for extreme weather conditions?
Absolutely. With an IP66/IP67 rating and a working temperature range of -45 ℃ to +65 ℃, they are specifically designed for harsh outdoor environments.
