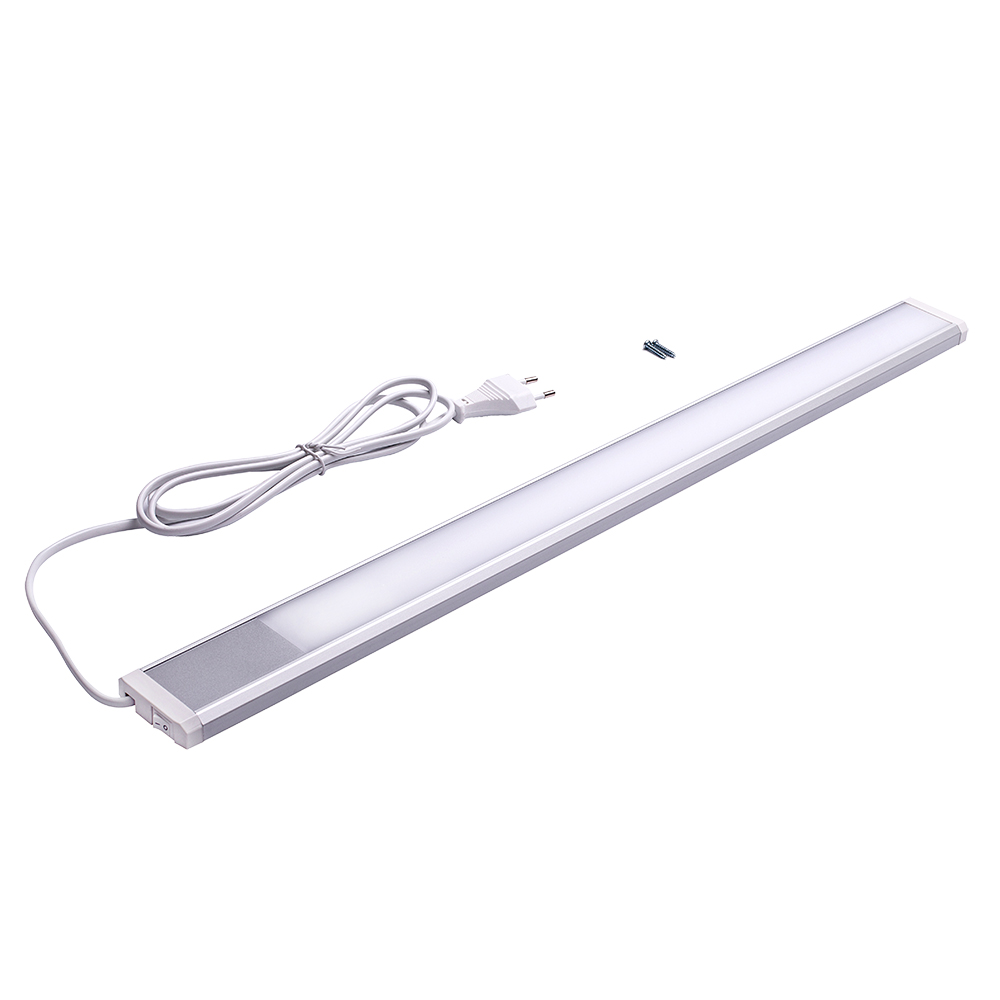

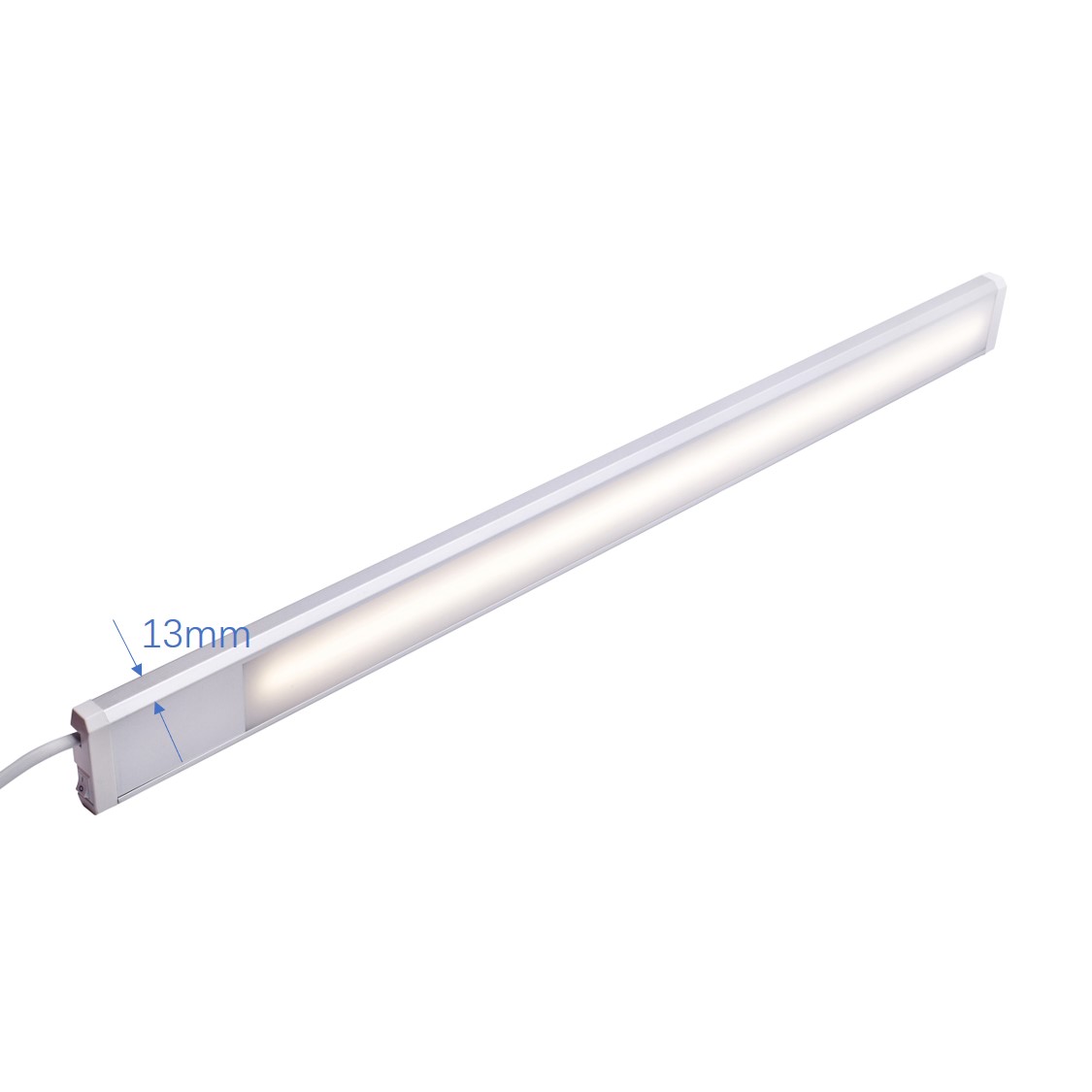

Ultrathin Design: Thickness only 13mm.

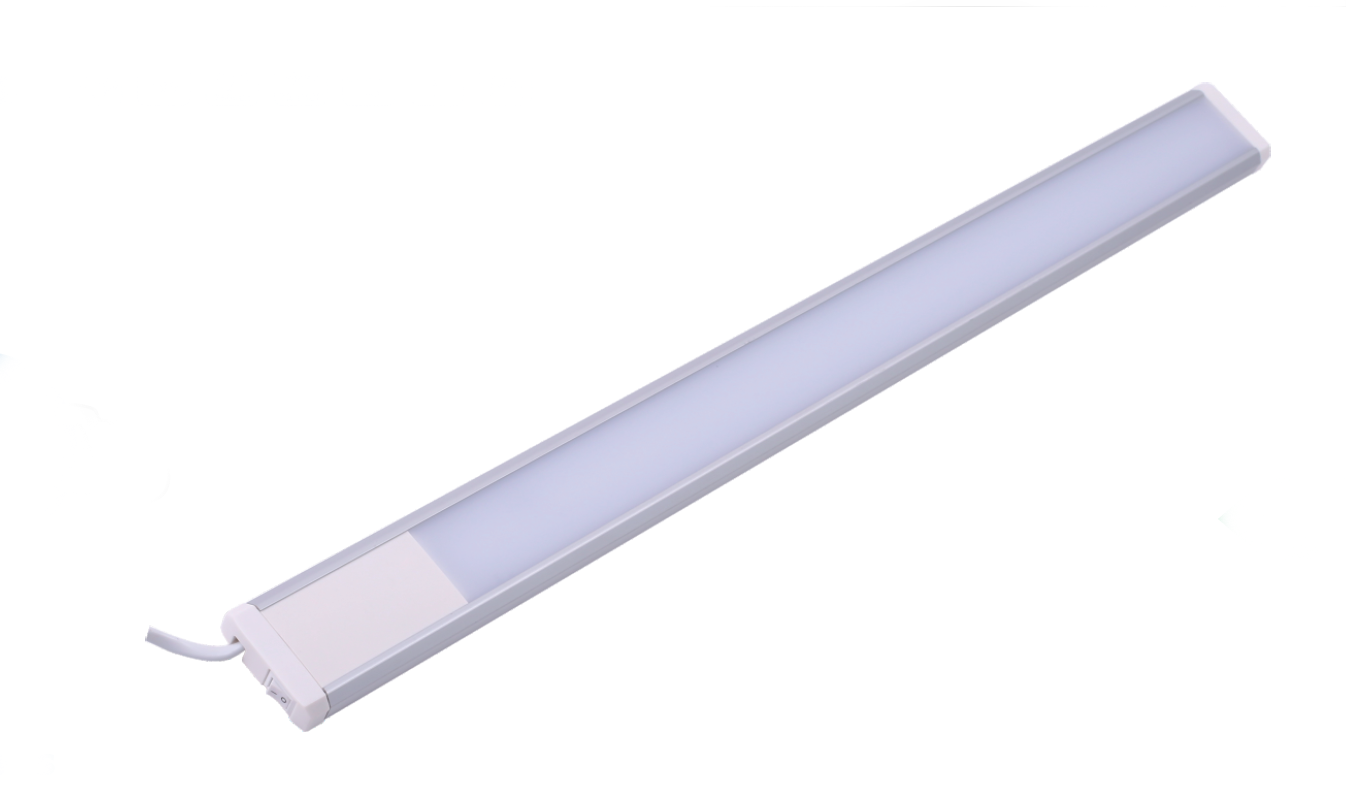

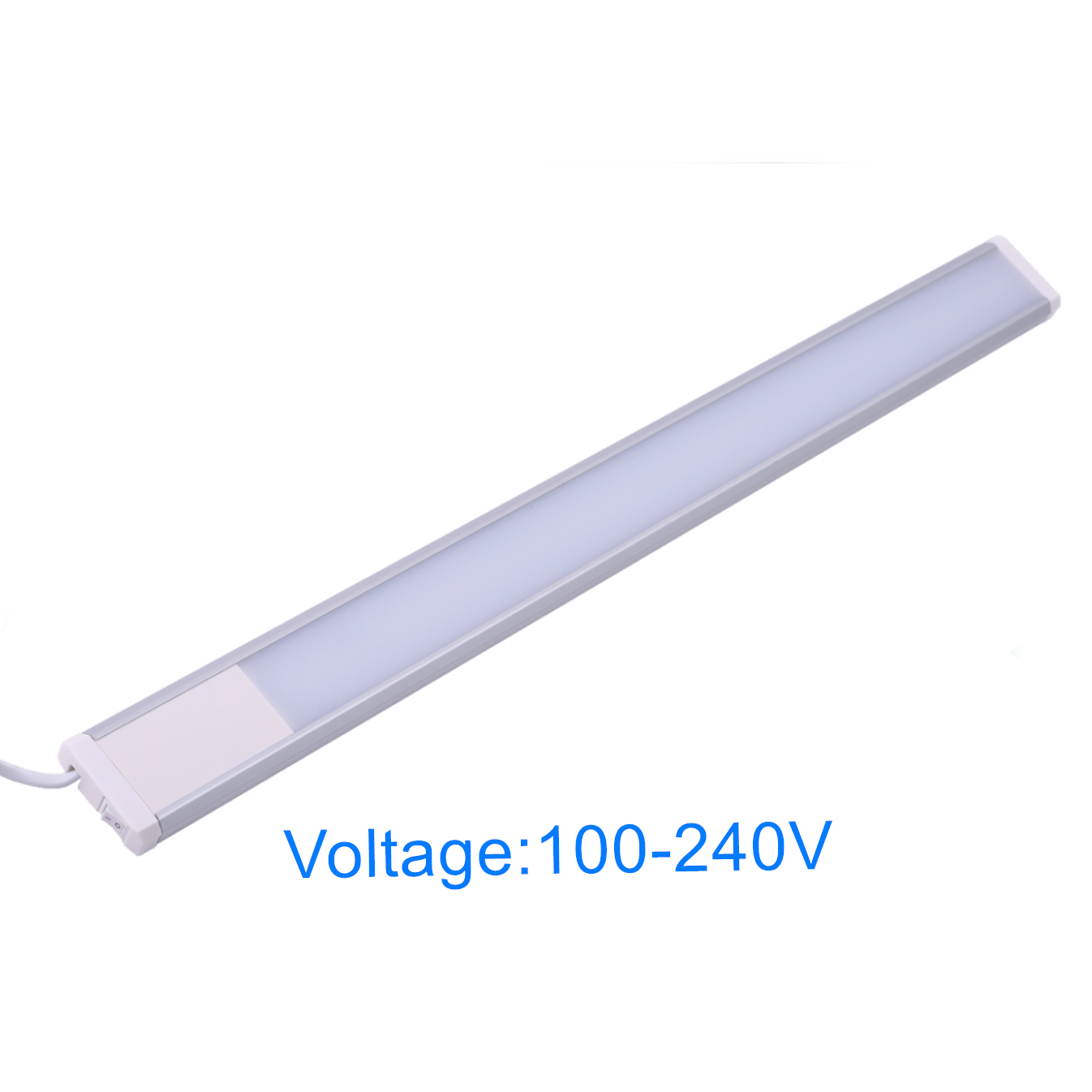

Rated Voltage: Supports 230V AC or 100-240V AC options.
Optional Lens: Milky or Clear lens available.
Material: Aluminium house ensures excellent heat dissipation.
| Material | Aluminum + PC |
| Dimensions | 49mm(W) x 13mm(H) x 600mm(L) |
| Light Source | High brightness SMD2835 LED |
| Rated Wattage | 10W |
| Luminous Flux | 800lm (80lm/W) |
| Color Temp | 2700-6500K |
| Beam Angle | 100° |
| Lifespan | 30,000 hours |
| Ingress Protection | IP20 (Indoor Use) |
| Operating Temp | -20°C to 45°C |

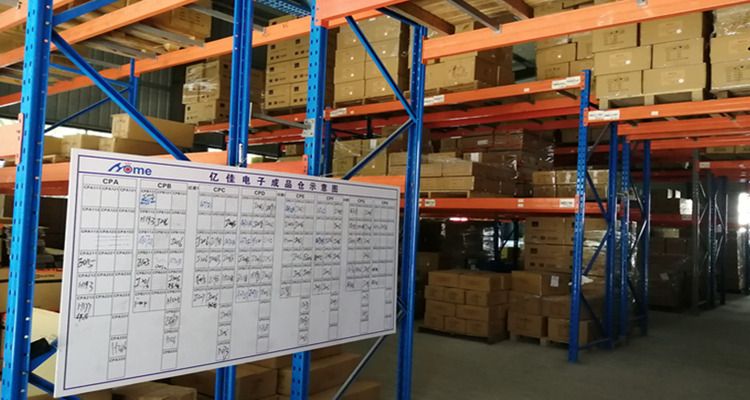

Our production management system is strictly implemented according to ISO9001. We utilize advanced production lines, testing devices, and a dedicated quality control team to ensure target market compliance including UL, CE, ROHS, GS, and ERP.
You can choose between Transparent (Clear) and Milky lenses to suit your lighting preference.

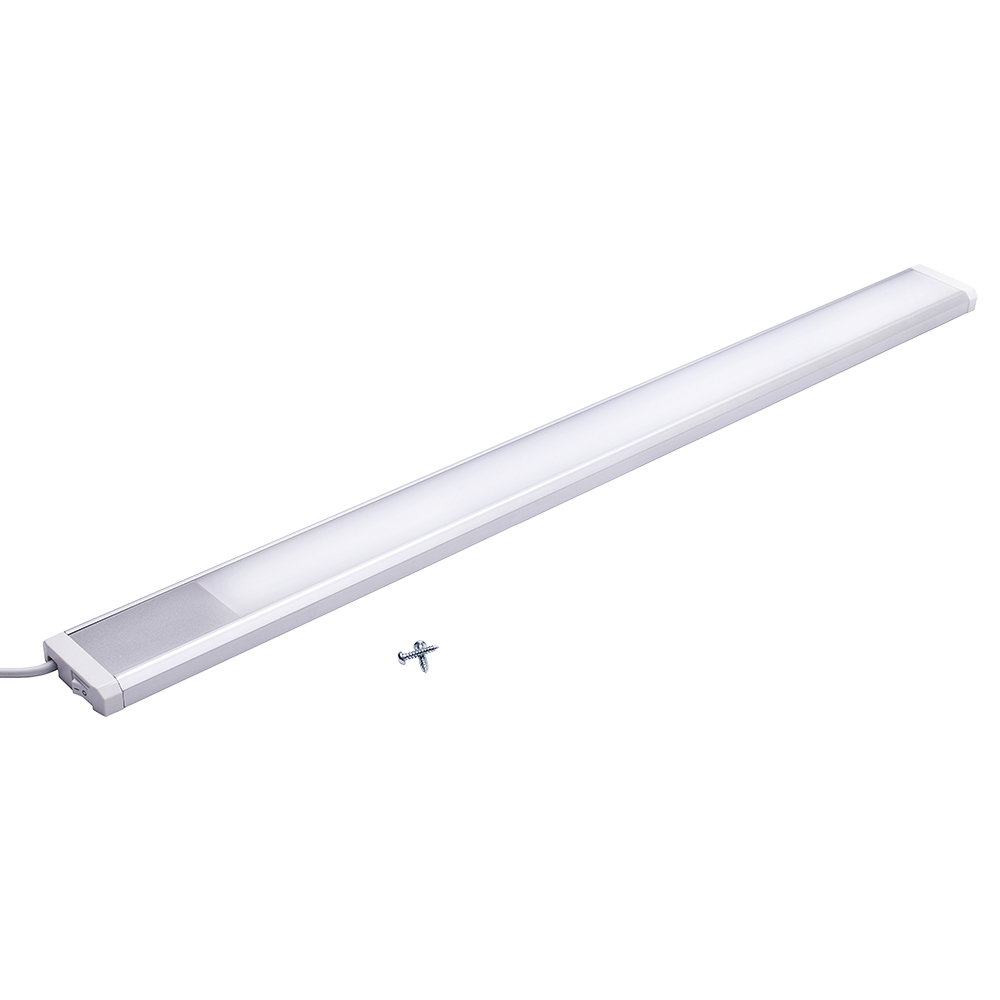

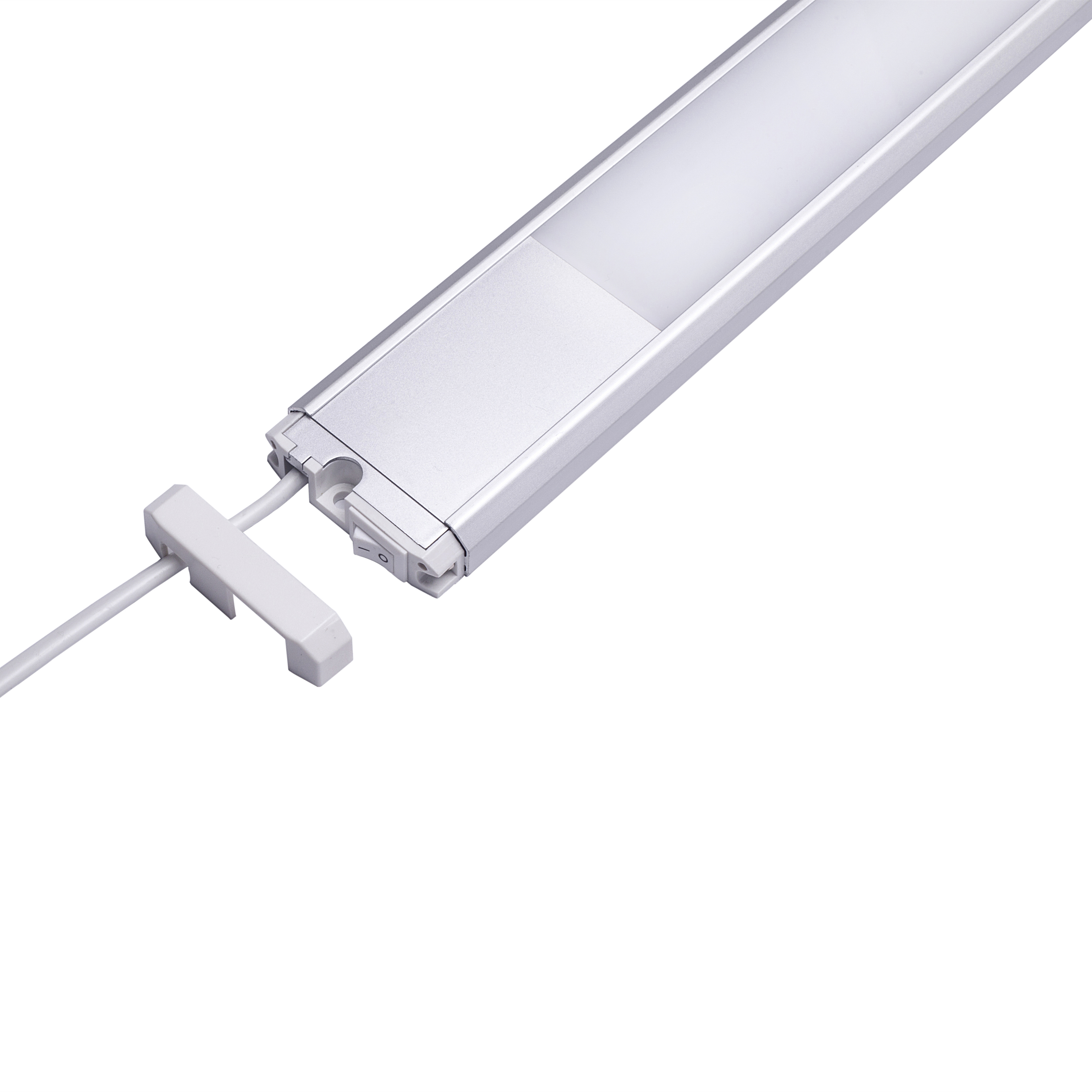

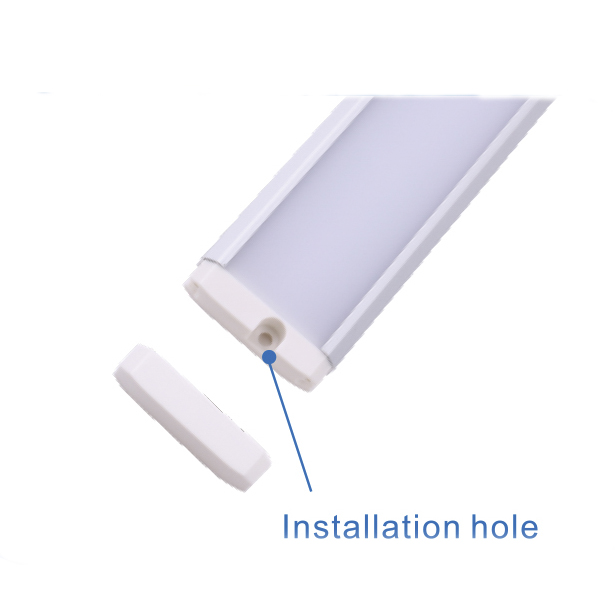

The unit supports easy installation using either 3M adhesive clips for a no-drill setup or M3.5 screws for a permanent mount.
No, the driver is conveniently built into the tube lamp, allowing for direct AC connection.
The high-brightness SMD2835 LEDs are rated for a lifespan of up to 30,000 hours.
The lights are certified with CE, ROHS, and GS by recognized bodies like TUV and SGS.
Yes, the aluminum housing is specifically designed for excellent heat dissipation, keeping the unit cool during operation.
